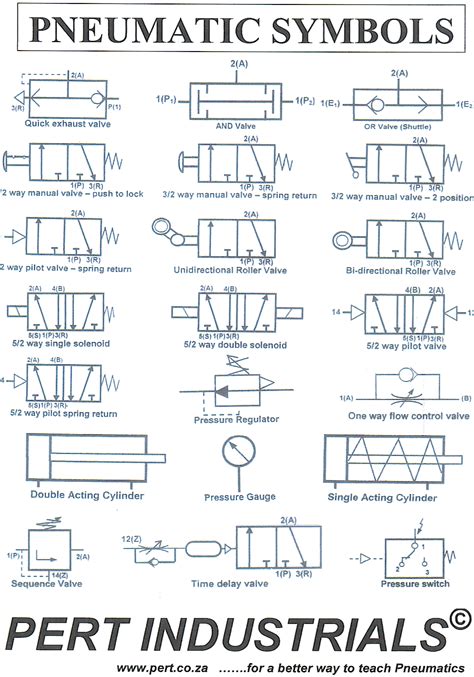

Pneumatic Schematic Symbols Chart. The following is a guide to the principal symbols found in a pneumatic air supply and distribution system. Volume symbol description circuit symbols are used through this catalogue and on the labels of most smc pneumatic products.
Pneumatic Circuit Diagram To Control A Single Acting Cylinder Wiring from www.wiringview.co
Solenoid (directly actuated with electronic signals) exhaust port symbol the inverted triangle symbol denotes an exhaust port. Web all the symbols you need to design your pneumatic circuit in.dxf format. This ebook is for users who wish to advance their pneumatic knowledge.
Volume Symbol Description Circuit Symbols Are Used Through This Catalogue And On The Labels Of Most Smc Pneumatic Products.
Web dec 19, 2017. Connecting pressure lines (usually representing plastic tubing for pneumatic [air] lines with low pressures, metal piping for. Web this solution extends conceptdraw diagram.9 mechanical drawing software (or later) with samples of mechanical drawing symbols, templates and libraries of design elements, for.
Below Are Some Common Illustrations Of Equipment Located On Fluids Circuit Diagrams, Followed By Descriptions Of The Most Common Elements.
Web pneumatic circuits drawing we recommend to have a look at the user manual to get familiar with the new features. Web graphic symbols for pneumatic equipment. Web all the symbols you need to design your pneumatic circuit in.dxf format.
Web Pneumatic Air Supply And Distribution Symbols.
The following is a guide to the principal symbols found in a pneumatic air supply and distribution system. Schematic drawings document the machine logic only and are never to. Solenoid (directly actuated with electronic signals) exhaust port symbol the inverted triangle symbol denotes an exhaust port.
Directional Air Control Valves Are The Building Blocks Of Pneumatic Control.
Web the basic symbol for the pump is a circle containing one or more arrow heads indicating the direction (s) of flow with the points of the arrows in contact with the circle. Scan through and easily download the one you need. Web recognizing and understanding schematic symbols will enable you to comprehend a circuit’s function.
Web Schematic Symbols Chart (Design Hydraulic And Pneumatic Circuits/Diagrams) Reservoir (Tank) Reservoir Symbol (Holds Fluid Medium Of Your System) Filters, Water Traps,.
Web introduction 1.1 general fluid power systems are those that transmit and control power through use of a pressurized fluid (liquid or gas) within an enclosed circuit. This ebook is for users who wish to advance their pneumatic knowledge. Symbols representing these valves provide a wealth of information.
